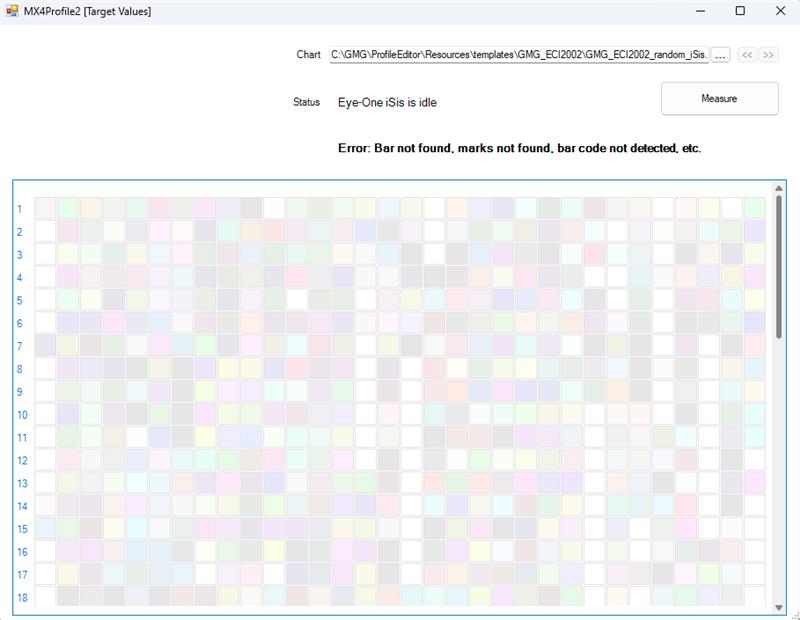

Test Chart cannot be measured: "Error: Bar not found, marks not found, bar code not detected, etc."

This error happens if the test chart is not correctly positioned in the measurement device.

To solve this issue, please cut off any label alongside the test chart.

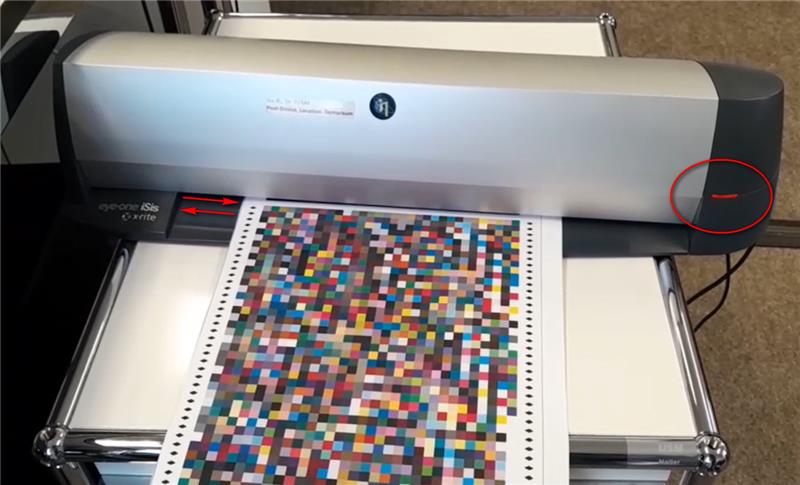

After that align the chart to the left side in the ISIS. Only in this position it can be measured.

If you place the chart in the middle of the measurement device, the device will light red and the chart cannot be measured.
