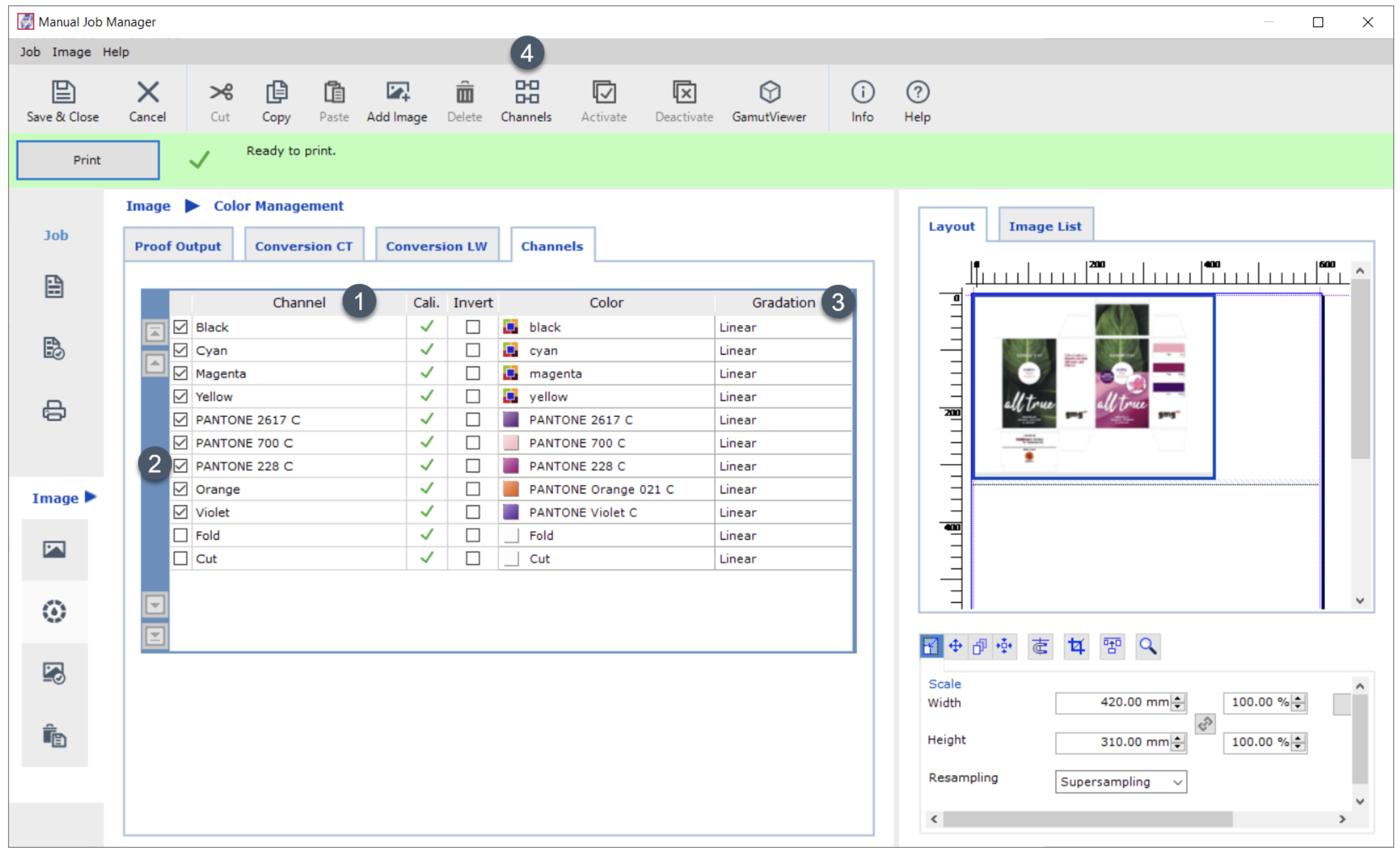

The color channels of the input image are listed in the Channels column (1) in the order of printing from top to bottom.
You can customize the order by selecting a color channel and clicking the arrow buttons on the left side to move the channel up or down in the list (2). Please note that CMYK is always printed as one set sequence, which is why you cannot move or swap these channels.
The mapping of channels to spot colors from a spot color database is shown in the Color column (3). You can manually remap channels by picking a spot color from the selected spot color set or by defining a custom spot color. Via the Channels button on toolbar (4), you can also define rules for an automatic mapping of image channels.
| Column | Description |
|---|---|
| Channel | Channel name from the input image. A multicolor image file has at least one spot color channel. It can have any number of spot color channels, plus Cyan, Magenta, Yellow, Black. CMYK and multicolor images only: You can deselect any input channel by removing the check mark in the first column of a channel row. Deselected channels are not shown in the preview and are not printed. |
| Cali. | Indicates whether a spot color uses a printer calibration or not (defined in the spot color set). Standard process colors (CMYK, RGB) always use the printer calibration. The check mark icon shows only that a printer calibration is used for processing the channel. |
| Invert | If activated, the color of the channel is inverted. The brightness value of each pixel in the channels is converted to the inverse value. For example, a pixel in a positive image with a value of 255 is changed to 0, and a pixel with a value of 5 is changed to 250. |
| Color | The color currently mapped to the original channel of the input image. You can change color mappings by clicking in the Color cell and choosing a desired color from the drop-down list. Instead of using any predefined colors, you can also define a custom color value (tonal value in percent). If a PDF/PS file contains cut paths, these can also be defined by selecting Define Cutting from the drop-down list. |
| Gradation | You can assign a gradation correction file to a spot color channel. |
Dynamic proofing with GMG OpenColor
For proofing with GMG OpenColor, you have additional options for defining color handling and printer order. The available options depend on the input file and can be set via the dropdown menu under Print Order.
Print Order options
- Custom: If this option is selected, you can customize the print order of channels via the arrow buttons on the left side. Select a channel and click the arrow up button (▲) to move it up in the list or click the arrow down button (▼) to move it down in the list.
Please note that CMYK is always printed as one set sequence, which means that you cannot move or swap these channels. - From OpenColor Proof Standard: The print order from the selected OpenColor Proof Standard will be used.
- From Input File (XMP): The XMP metadata of the input file will be used for profile calcuation. The correct measurements are automatically assigned and the matching profile will be created by GMG OpenColor on the fly.
- From Input File (PDF): The embedded spectral CxF spot color definitions from the PDF File will be used for the dynamic profile calculation, in combination with the GMG OpenColor project inks.
