What is GMG DotProof?

GMG DotProof is an option within GMG ColorProof for creating halftone proofs based on 1-bit imagesetter data. It enables the direct processing of screened production files so that they can be output on inkjet proofing systems before plate imaging or press start.

The purpose of DotProof is to make screened data visible and verifiable at an early stage, allowing screening and raster-related issues to be identified prior to platemaking.

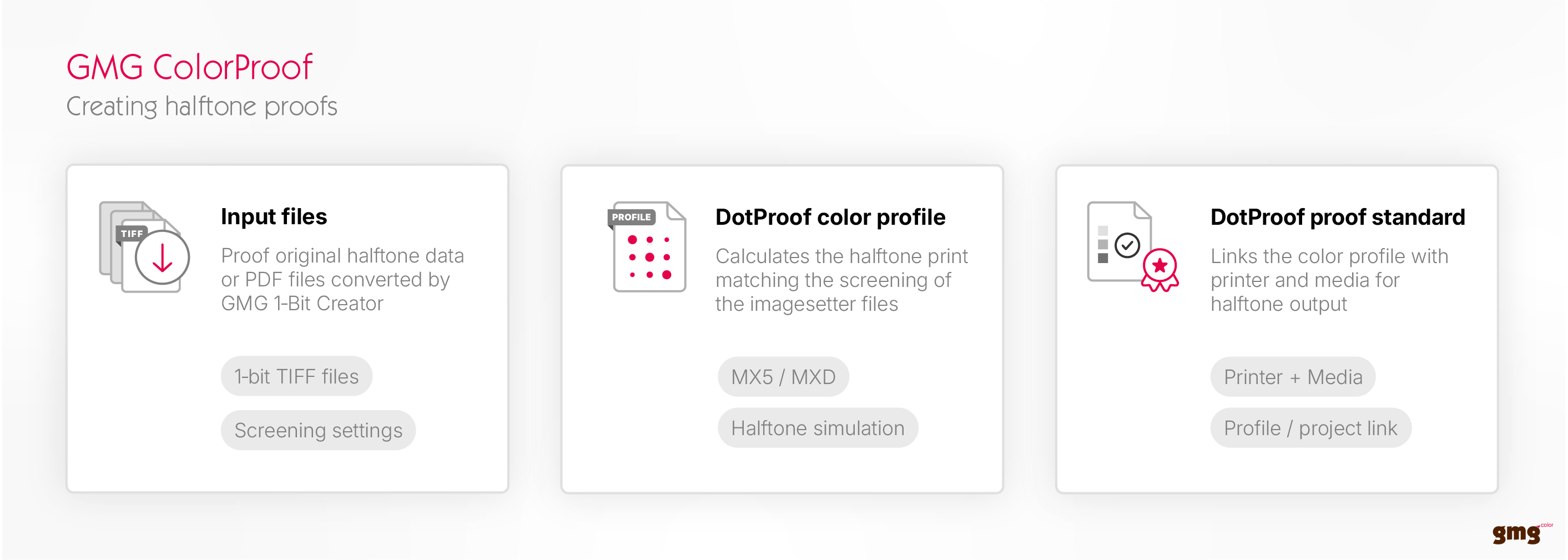

The DotProof workflow consists of three main components:

1. Input files with screening parameters

DotProof processes original 1-bit TIFF files from the imagesetter or PDF files that have been converted into 1-bit data using GMG 1-Bit Creator. Screening information from the production data is preserved and used for halftone simulation. See Halftone proofs with 1-Bit files

2. DotProof color profile

The DotProof color profile calculates the halftone print result based on the specific screening parameters of the imagesetter data.

Two profile types can be created and used:

• MX5 profiles (4-color profiles) created with the integrated GMG ProfileEditor
• MXD multichannel profiles created with GMG OpenColor

MXD profiles allow advanced multicolor profiling and more precise simulation of complex ink interactions, including spot color overprints.

3. DotProof proof standard

The proof standard links the DotProof color profile with the selected printer and proofing medium.
This defines how the halftone simulation is physically reproduced on the inkjet proofing device.

Proof verification

Halftone proofs can be verified using control strips processed under the same screening conditions as the production data.

Control strips can be:

• Created from 1-bit files directly within the system
• Generated by screening an existing contone control strip (e.g., Ugra/Fogra Media Wedge CMYK) into 1-bit data

This ensures that verification elements reflect the same screening structure as the production file.

Technical considerations

Proofing systems typically operate at a lower physical resolution than imagesetters or CTP devices. As a result, certain technical limitations apply to halftone simulation.

For example, screen rulings above approximately 175 lpi can be difficult to reproduce consistently on many inkjet proofing devices. The achievable quality depends on the resolution and capabilities of the selected printer and medium.
